Mechapro Tire Changer and Wheel Balance Combo for 26" Rim Diameter
SKU 1180Combo
Price
$5,999.00
Additional 10% off with orders over $50,000
This combo include the following equipment:
- CE Certificate
- Outer clamping Rim: 12″-24 ″
- Inner supporting rim: 14”-26 ″
- Max wheel diameter: 1000mm（41 inch）
- Wheel width: 3″- 15″
- Operating Pressure: 120-145psi (8 -10Bar)
- Power 1.1KW,Single Phase, Voltage 220V/60HZ (Default) and customizable
- Plug Included
Bead breaking force: 5500lb / 2500kg
Rotation per minute: 6.5 rpm
Noise: <70dB
- Oversized window for full protection and clear visibility.
Triple-layer compartments for organized tool management.
Built-in counterweight for heavy-duty tire balancing.
Optimized adhesive weight placement for better accuracy.
Intuitive control for safer and faster operation
- Commercial Grade Quality
- 2-year limited Warranty - Parts only
- Contact us to customize this product
Quantity

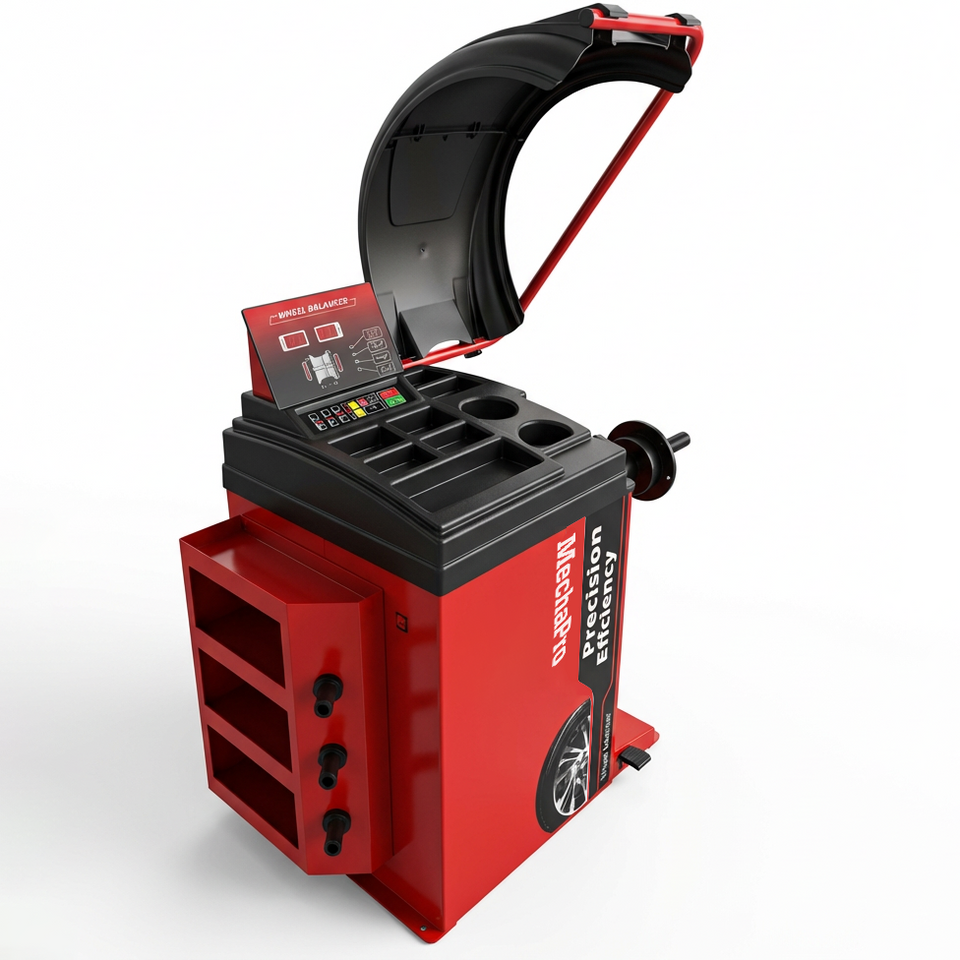

Wheel Balancer Specification
| Product Name | Tire Balancer | Max. Wheel Diameter | 1000mm/39" |
| Model | Y-601A | Balancing Cycle | 7 s |
| Power Supply Voltage | 220V | Spindle Speed | ≤200 r/min |
| Power | 0.25 kw | Balancing Accuracy | ±1 g |
| Tire Width Range | 1.5" - 20" | Product Dimensions | 830 x 620 x 1060 mm (33"*24"*42") |
| Rim Diameter Range | 10" - 26" | Packaging Dimensions | 1090 x 730 x 1200 mm (43"*29"*47.2") |
| Max. Wheel Weight | 70 kg/154lb | Net Weight | 130 kg/286lb |
Tire Changer Spec
| Outer clamping Rim | 12″-24 ″ |
| Inner supporting rim | 14”-26 ″ |
| Max wheel diameter | 1000mm（41inch） |
| Wheel width | 3″- 15″ |
| Operating Pressure | 120-145psi (8 -10Bar) |
| Bead breaking force | 2500kg |
| Rotation per minute | 6.5 rpm |
| Noise | <70dB |
